What is AutoCAD and what's it for?

What is AutoCAD and what's it

For?

A creation to AutoCAD for structure and engineering.



AutoCAD might not be the pioneer of Computer Aided Design applications, however, it's far, certainly, and the maximum identified far, to the factor that it has ended up the undisputed reference, at the side of different applications from his agency, Autodesk, for structure and engineering.

THE REFERENCE SOFTWARE FOR ARCHITECTURE AND ENGINEERING

If we needed to outline what AutoCAD is in some words, we might say that it's far a CAD-kind software program orientated to drawing and modeling in 2D and three-D. It lets for the introduction and change of geometric fashions with a nearly endless capability to increase all kinds of systems and gadgets.

This capacity to paint in specific fields has made AutoCAD go beyond its conventional use within side the global of structure and engineering, to go into the arena of image and indoor layout.



Currently, AutoCAD has a mess of specialized auxiliary gear which cowl each type of commercial field associated with 2D layout and three-D modeling



What is AutoCAD and what's it for?

Autodesk, the primary steps:



It turned in 1982 when a collection of programmers, led by John Walker, evolved the primary model of AutoCAD, the software program that Michael Riddle, and some other members of that team, had created before.

At a time when computer systems and software programs have been nonetheless starting, the recognition of AutoCAD led the agency to develop progressively to the existing day.

During the years, Autodesk skilled the departure of John Walker and the advent of Carol Bartz, who led the agency to multiply its achievement and AutoCAD’s marketplace penetration has become indisputable.

Nowadays, Autodesk gives a huge quantity of software program gear targeted at layout, modeling, rendering, and application.





AutoDesk

AutoCAD today.

Currently, AutoCAD is refining its capabilities for 2D and three-D layouts, its interplay with the cloud, and its compatibility with different applications increasing its functionalities.

As, for example:



2D Design.



In the modern-day model, AutoCAD has notably progressed the features for 2D layout, refining the accuracy of the gear by enhancing a few options

• Create dimensions routinely

• Linkable paperwork with spreadsheets applications

• Storing custom views

• Dynamic blocks

• Ability to extract information from gadgets, blocks, and attributes

• Matrices introduction

• And greater…

3D Design.



For three-D modeling, Autodesk has targeted enhancing rendering and compatibility with different applications which supplement AutoCAD

• More sensible three-D modeling

• Attach factor cloud files

• Apply sensible lighting fixtures in renderings

• Create cross-sectional drawings

• Rendering at once inside the cloud

• Find out greater…



Latest capabilities.

Following intently at modern-day technologies, Autodesk is focusing its efforts on cross-tool compatibility and operating an increasing number of with inside the cloud

• Cloud garage and querying

• Multi-tool support

• Quick dimension section

• File’s development history

• Block pallet

• Improved performance

• Innovative AutoCAD capabilities



AutoCAD 2D and 3D Modeling.

How AutoCAD works.

AutoCAD works in layers with vector photographs, even though bitmap photographs also can be imported, which makes us assume at once Photoshop or Illustrator fashion applications.

However, its complete interface is designed for the layout of plans and systems, and is split as follows:

• Graphic Area: wherein we can make our designs

• Options Ribbon: wherein we can find the maximum not unusual place moves in our paintings environment

• Pull-down menu bar and toolboxes

• Status bar, wherein we discover statistics approximately coordinates, grid manipulate buttons, or optometric mode, amongst others, in vector form.

• Command line, used to engage with this system through instructions to get.



Calculations or statistics that we may also want and that AutoCAD routinely collects Files kind.



AutoCAD works with its personal local document kind referred to as DWG, which includes all of the statistics approximately the designs, geometries, and photographs of the authentic document.



The huge reputation of the software program has brought about the improvement of different gear to visualize or even open local AutoCAD files, thru a statistics trade machine called DXF (Drawing trade File).

AutoCAD Files Type.



Compatibilities with different applications.

In addition to its regular DWG format, AutoCAD additionally lets you export, taking gain of its Victoria machine, to different applications targeted on image layout inclusive of Adobe Illustrator or Corel Draw.

Likewise, we also can paint in parallel with different CAD kind applications.

Compatibilities with different applications.



Blocks and libraries.



In AutoCAD, a block is a construction detail that may be inserted from a library right into a layout.

They can constitute from specific kinds of furnishings to greater complicated systems like slabs, stairs, woodwork, etc. It is not unusual to place to apply blocks to save time while such as with inside the layout gadgets which are continuously repeated or of which we want a huge quantity (for example, inside the layout of the ground plan of a house, the doorways and windows).



Generally, AutoCAD blocks are divided into themed libraries with specific kinds of unique item blocks just like the ones we spoke me approximately.

Blocks and libraries.



Commands.



One manner to hurry up your paintings at the same time as the use of AutoCAD is the instructions, which bar may be placed in diverse regions of the screen, from docked to floating.



Commands are orders that will let you speedy carry out operations, from saving your paintings to rounding the rims of an item, putting items, or developing arcs. The quantity of to-be-had instructions is big and maybe without problems determined on the web.



Some of the maximum benefits are:

• AREA: to calculate the region and perimeter of the item you choose.

• CHSPACE: with this command you may input the gadgets inside the version from the workspace, scaling them routinely.

• MULTIPLE: reflect the identical motion till you decide to cancel the command.

• OOPS: restores the final factors you've got deleted.

• EXTEND: it serves to extend an item till it meets the rims of some other one.



AUTOCAD REQUIREMENTS AND LICENSES.

---

AutoCAD is a demanding program that requires a powerful computer powerful to develop its full potential or even be used.

The software is available for both Windows and Mac computers.

Requirements

For the 2020 version, the requirements are as follows:

WINDOWS:

Microsoft® Windows® 7 SP1 with Update (64-bit only) Microsoft Windows 8.1 with Update (64-bit only) Microsoft Windows 10 (64-bit only) (version 1803 or higher)
Processor	2.5–2.9 GHz processor
RAM	Basic: 8GB Recommended: 16GB
Display Resolution	1920 x 1080 with True Color for conventional displays – High Resolution & 4K Displays
Display Card	Basic: 1 GB GPU with 29 GB/s Bandwidth and DirectX 11 compliant Recommended: 4 GB GPU with 106 GB/s Bandwidth and DirectX 11 compliant
Disk Space	6,0GB

MAC:

Apple® macOS® Catalina v10.15 (requires Update 2020.1) Apple® macOS® Mojave v10.14 Apple® macOS® High Sierra v10.13
Model	Apple Mac Pro® 4,1 or later; MacBook Pro® 5,1 or later; iMac® 8.1 or later; Mac mini® 3.1 or later; MacBook Air® 2.1 or later; MacBook® 5.1 or later
CPU Type	64-bit Intel CPU (Intel Core Duo CPU, 2 GHz or faster recommended)
RAM	4 GB of RAM (8 GB or above recommended)
Display Resolution	1280 x 800 display with true color (2880 x 1800 with Retina Display recommended)
Disk Space	3 GB free disk space for download and installation

Licensing:-

Another essential factor to keep in mind is licensing.

Like many different programs, in a more and more not unusual place trend, AutoCAD works with an annual license machine to permit its use

AutoCAD for professionals

The AutoCAD export licenses are to be had on a monthly, annual, or six-every-year basis.

One subscription makes it feasible to put AutoCAD on 3 one kinds of computer systems, with the exception that it may handiest be utilized by one consumer at a time.

A not unusual place shape of use is with one subscription mounted on a couple of computer systems wherein folks who aren't the number one consumer buy extra standalone licenses.

Similarly, a subscription lets the software program be mounted on each Windows and Mac computer system.

AutoCAD for college students:-

For faculties and college students, Autodesk offers instructors and college students a loose get entry to license to AutoCAD for a one-yr duration that may be renewed so long as the college or pupil who desires to use the software program nevertheless fulfills the important requirements

AUTOCAD ALTERNATIVES:-

There are several options for AutoCAD or certainly considered one among its variants.

Some are paid for and others are primarily based totally on open source, so they're reachable to any consumer.

Pay for Software:-

·         Draftsight

It is a CAD kind of software program (remember, pc aided layout). It has been available in the marketplace considering that 2011 and it's by far a device that reminds me lots of AutoCAD.

It works, like AutoCAD, with DWG documents and the DXF standard. As a count of fact, Draft sight’s licenses are more perpetual and inexpensive than Autodesk’s software program.

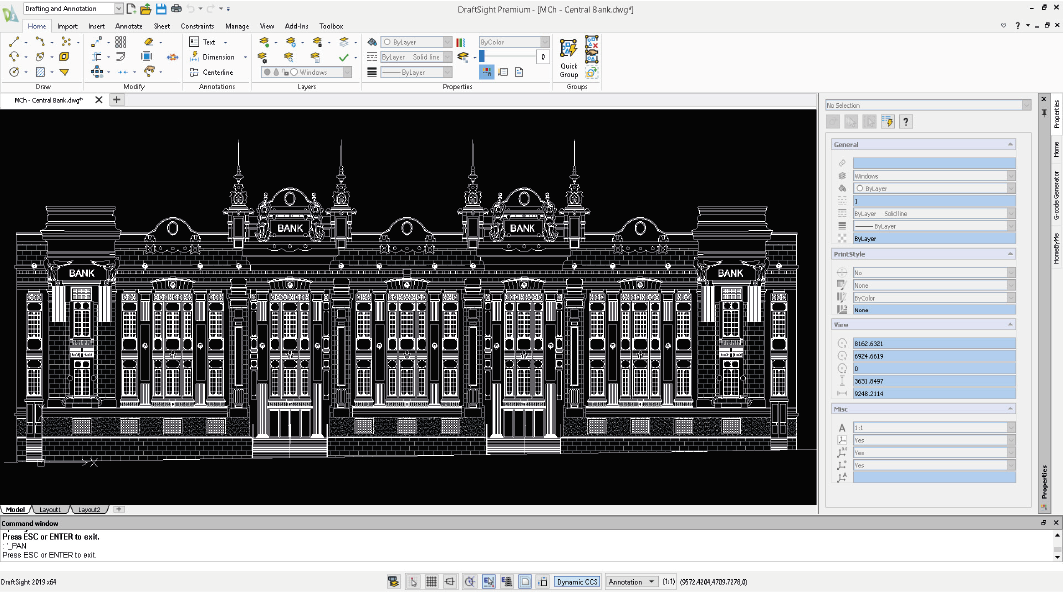

Draft sight

•           SelfCAD

  Self-cad is a device centered on a 3-d CAD layout this is used from the browser. Its easy layout feels appealing and allows the gaining knowledge of curves for users.

  It is suggested for the ones individuals who need to get begun out withinside the international of the 3-d layout.

•


Self CAD.

•              BricsCAD

  BricsCAD is some other opportunity for AutoCAD well matched with DWG documents and centered on 2D drawing and 3-d modeling.

   It lets in you export your documents to famous codecs including PDF, DWF, or SVG.



BricsCAD

•              MicroStation.


  It is one more CAD program focused on design and also engineering based on 2D design and also 3D modeling.
  It is among the earliest programs, without thinking AutoCAD, as it was launched in early 1987.

Micro Station.

• Corel CAD.

Corel CAD is the CAD program of CorelDraw, the widely known graphic layout program, with which it shares a great resemblance in regards to the user interface. It has all the typical CAD attributes and is compatible with all significant CAD programs.

Corel CAD.

• Sketch Up

Among the most popular software program among designers as well as is taken into consideration to be one of the most convenient CAD programs to make use of.
It is specifically preferred for urban as well as interior design and design.

Sketch Up.

Free software.

• QCAD

QCad is an open resource application for 2D style, oriented to the development of plans and also technical illustrations such as structures, interiors, schemes, and also diagrams or mechanical components.
Despite being a complimentary software application, it includes some paid versions

QCAD

• LibreCAD

LibreCAD is offered for Windows, Apple, and Linux environments, and also bases its development on its user community.
It took its first steps as a QCAD job for a camera, that is, computer helped manufacturing to be utilized with CNC equipment.

LibreCAD

• FreeCAD

FreeCAD is a lot more concentrated on design and design tasks than on plans as well as architecture.
However, the program is versatile to the requirements of each user and can be prolonged with extra functionality.

FreeCAD

• Blender.

Mixer is just one of the most recognized free alternatives for 3D modeling, with a solid element devoted to animation, providing, and also lighting.
After the launch of its last variation its use has been promoted as well as nowadays is among the most prominent open-source choices.

Blender.

• OpenSCAD

In the case of OpenSCAD, it focuses a lot more on the industrial design CAD itself than on the graphics section.
Through the codes that the customer adds, the software application develops and also customizes the developed item in 3D.

OpenSCAD

• SolveSpace

SolveSpace is focused on parametric modeling of 2D as well as 3D figures. It offers the possibility of preparing items for machining. It consists of a mechanical simulator and can be executed in Windows, MacOS and Linux.

SolveSpace.
